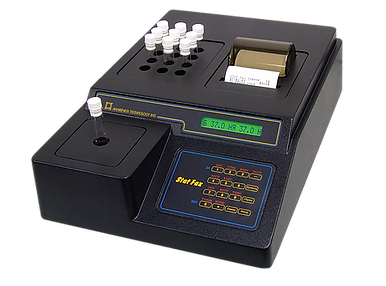

Stat Fax 1904
Biochemistry Semi-Automated Analyzer
Programmable open system
​
The compact robust design, simplified flexible applications , accurate, and reproducable results, make Stat Fax® 1904 an excellent choice for basic photometric biochemistry analysis.
-
Read well accepts 12 mm test tubes.
-
Standard 6 filter configuration (340 nm - 600 nm).
-
Reads and Calculates the results of endpoint and kinetic colormetric clinical assays.
-
Kinetic Assays may be plotted on the internal graphics printer to verify linearity of the reaction.
-
Built-in 37 ÌŠC incubation block with 12 stations.
-
Single or multipoint calibration.
-
Stores more than 50 tests in memory.
PRODUCT CHARACTERISTICS
Photometer
-
Stability Drift of no more than 0.005A in 8 hours/bichromatic.
-
Light source Tungsten halogen lamp, with lamp saver feature.
-
Standard wavelengths 340, 405, 450, 505, 545, 600 nm.
-
Optional filter range 340 nm - 700 nm (custom order).
-
Reading range 0 to 2.5 absorbance units.
Sampling
-
12 mm tube, minimum sample volume 1 ml.
-
Read speed 3 seconds per tube.
-
Temperature 37ËšC, block with 12 stations is constantly on, read cell has an on/off switch and may be disabled as required.
Operating Modes
-
Calculation modes Single point calibration by standard or factor, multipoint calibration with point-to-point curve fit,
-
rate by standard or factor (batch or singly).
-
Test menu More than 50 open channels to store tests. Stores all parameters including wavelengths, calculations, unit
-
codes, linear and normal ranges, rate timing, standard values, test names and previous standard curve.
Other Characteristics
-
Dimensions 9” (22.86 cm) x 13.5” (34.29 cm) x 5” (12.7 cm).
-
Weight (10 lbs) 4.5 kg.
-
Power 115/230 V AC 50/60 HZ (switch selectable).
